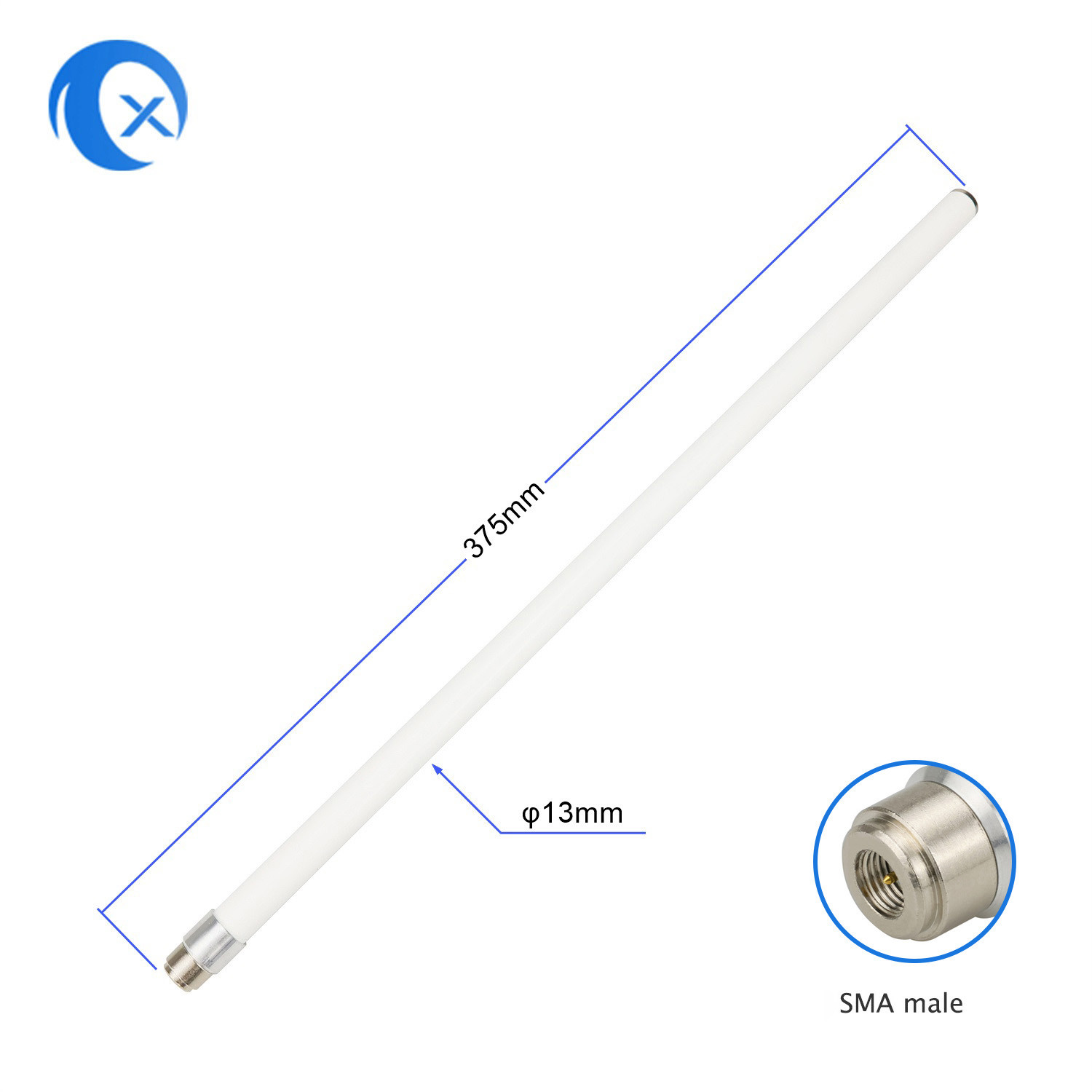

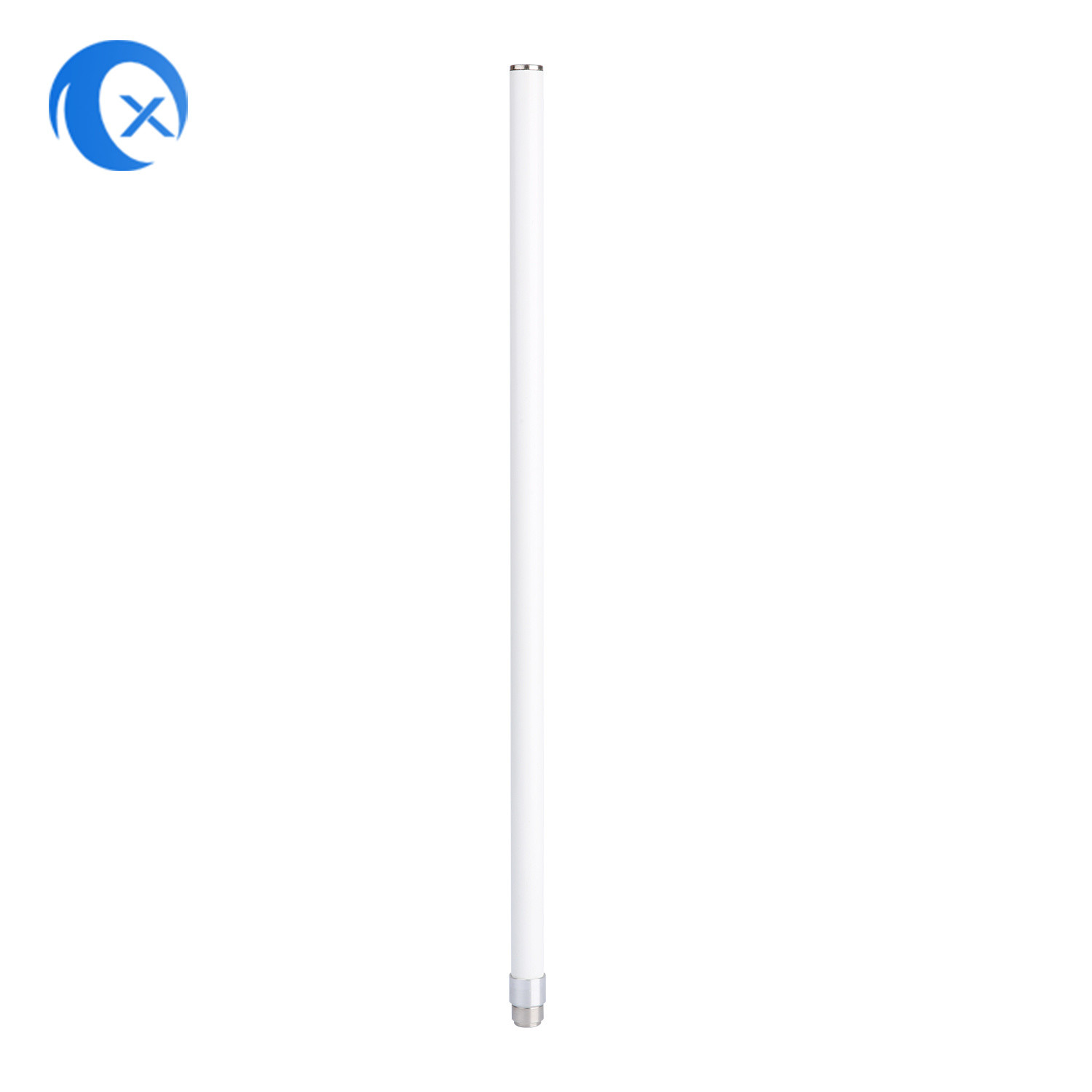

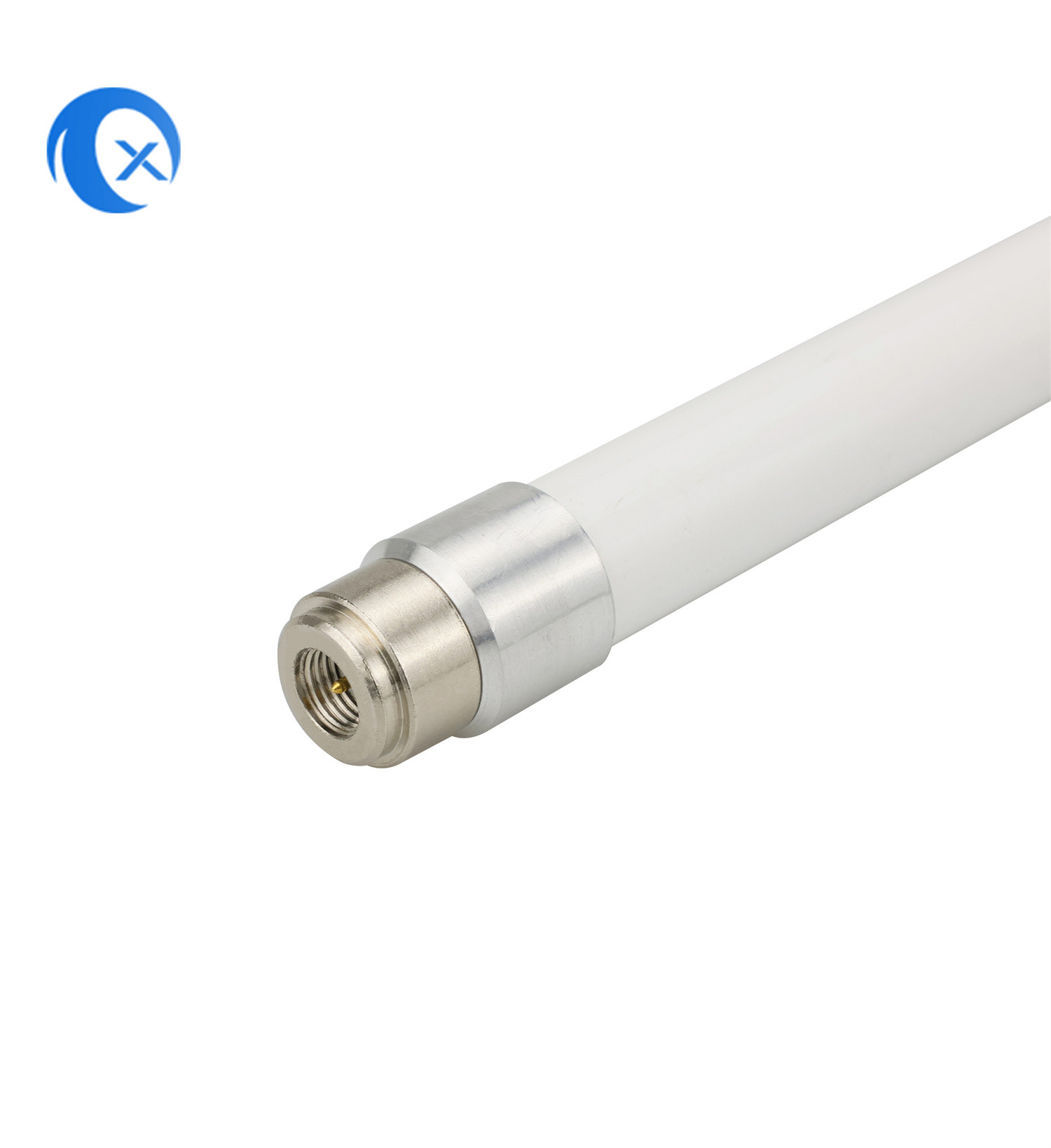

2.4G omnidirectional Wifi fiberglass base-station antenna with SMA male connector
Features:
1. Strong anti-shock, waterproof, and anti-corrosion ability.
2. Work around the clock.
3. Optimized size and frequency band.
4. High gain, low standing wave, strong anti-interference ability.
Electrical Specifications of Ultra-wideband fiberglass antenna
| Frequency range(Hz) | 2400-2500 MHz |
| Gain (dBi) | 7 |
| VSWR | ≤2.0 |
| Input impedance(Ω) | 50 |
| Polarization | Vertical |
| Lightning Protection | DC Ground |
| Input connector type | SMA Male or Requested |
| Mechanica Specifications |
| Dimensions(mm) | 13*375 |
| Openrating temperature(℃) | —45～85 |
| Radome color | Gray, Black, White |
Fiberglass Antenna for base station
These series are heavy-duty, Omnidirectional fiberglass base station antennas. It has a collinear design enclosed in high-density fiberglass, which is covered with a protective ultraviolet inhibiting coating. Operate on 100 MHz, 433MHz, 868MHz, 915Mhz, 2.4 GHz, 3G, 4G, 5G, and 6 GHz frequencies and are used for ISM, Wi-Fi, IoT, RFID, UWB, and DSRC applications. Two types of antenna mounting are offered: connector mount and pole/mast mount. Antennas with a connector mount do not include additional mounting hardware, they have an N Plug connector and are IP67 certified. Antennas with a pole/mast mount are attached to an included aluminum guided pipe which is attached to a pole/mast with included mounting brackets. They have an N Jack connector. Tengxiang base station antennas have gain from 3 to 12 dBi.
